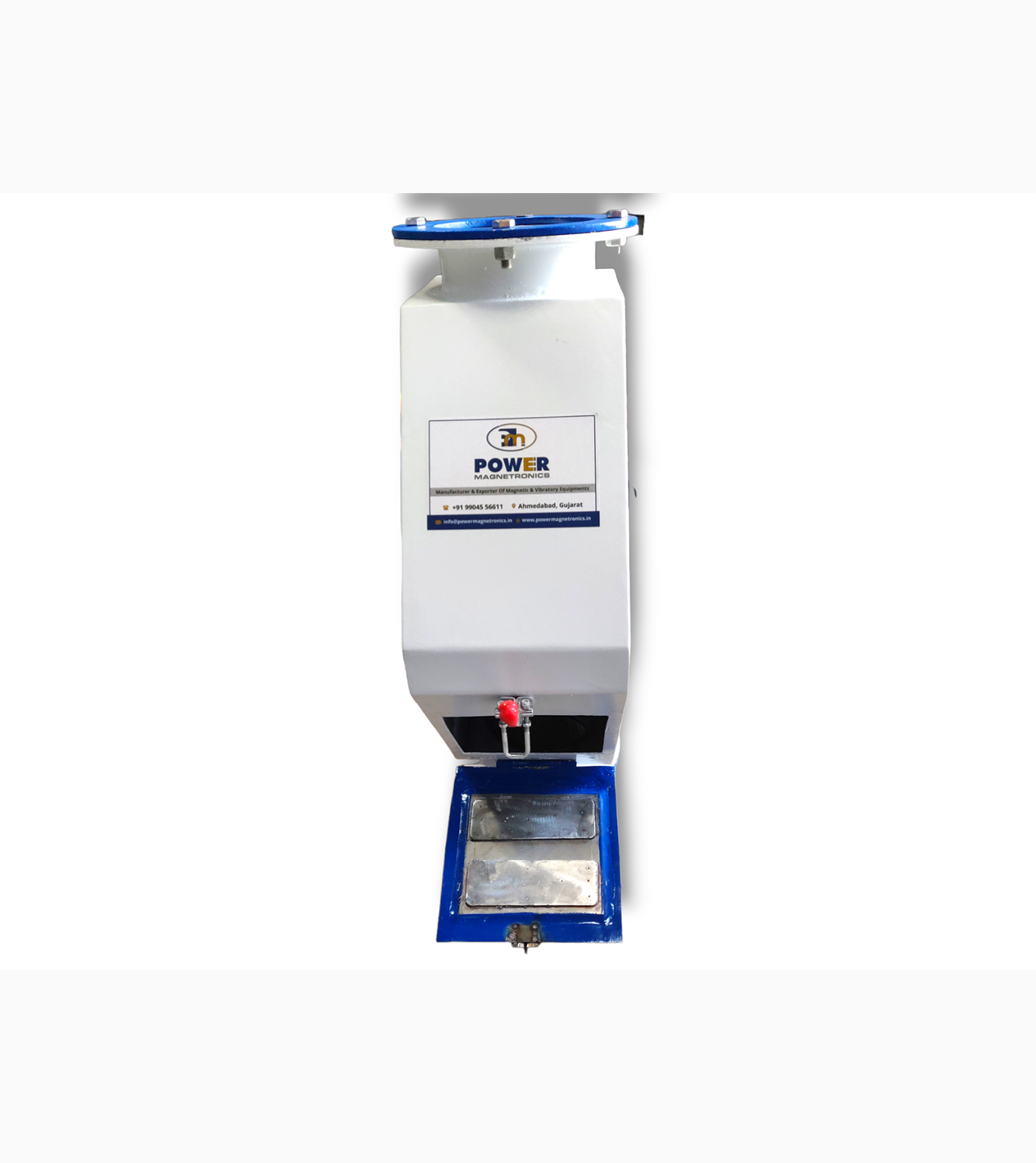

The product has hump shape for material flow in the magnetic field and so eliminates or removes iron particles from the material. Hump magnets are used where the flow of material is vertical. Generally, it consist of two plate magnets mounted in an offset housing and opposite sides. As feeding material enters into housing it strikes directly on the face of the first plate magnet, and then travels through the offset angle of the housing and impacts directly on the second plate magnet. This provides dual separation results for high volume, poor flowing materials. The strong magnetic field will attract and hold the iron tramps when material passes through the plate magnet. The Hump takes advantage of the ferrous material density because the heavier metallics are more likely to work their way to the face of the magnet, increasing the probability of capture.

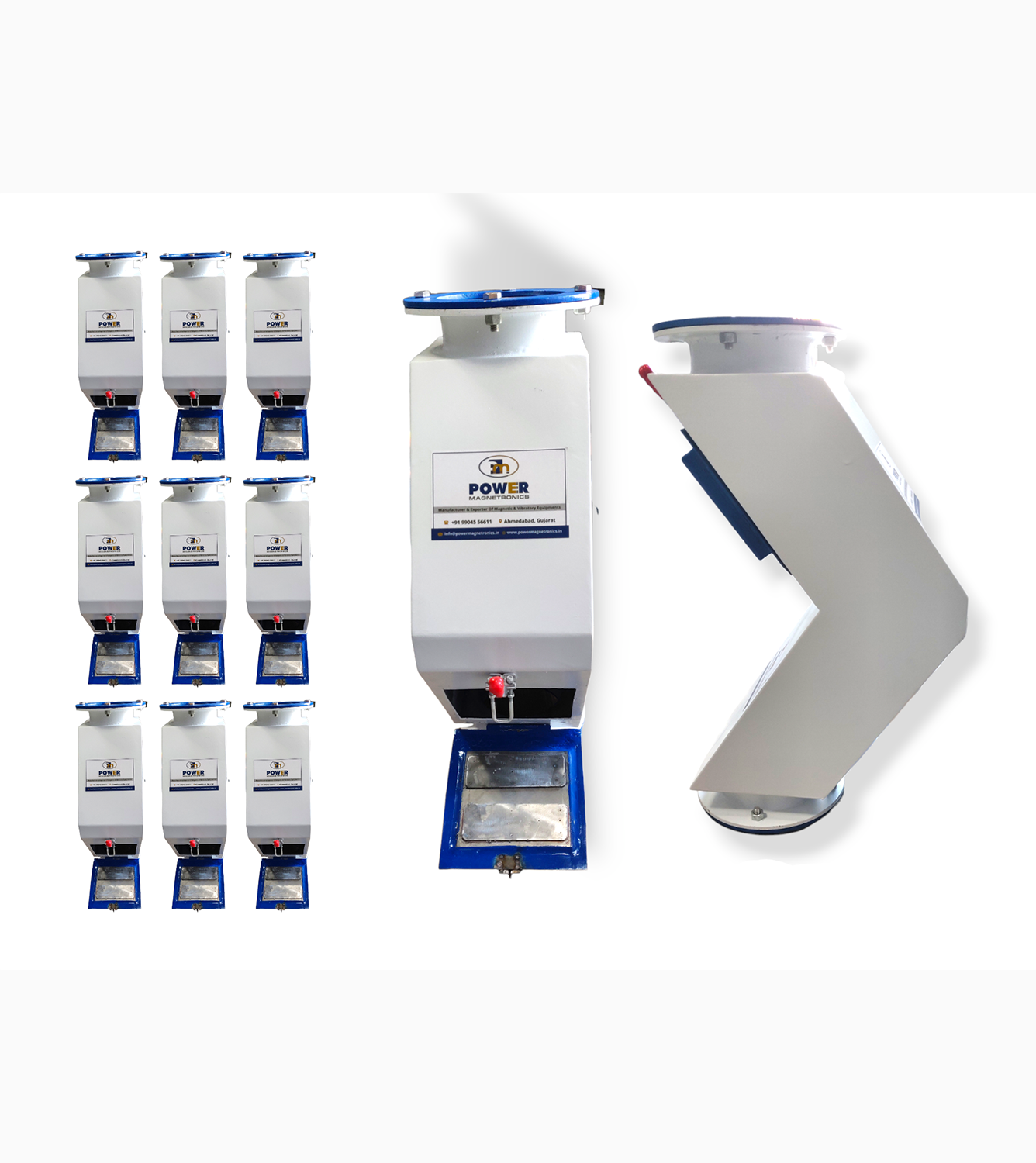

The housing is "dog-legged" on two sides at 45 degrees from a flat plane. Each leg contains a plate magnet hinged and latched to the housing, one plate magnet at the up stream side and one plate magnet at the downstream side assembled and is installed in vertical spouts that provide for achieving excellent separation of poor flow-based, high volume or abrasive materials. We manufacture Hump Magnet with the specific method using high-quality magnet for better performance, with precise design that needs less cleaning, and maintenance.
Power Magnetronics make hump magnet is designed to be installed in a chute, or in the conveying process. The most displayed position is under conveying material, suspension above the conveyer belt, or installed at the terminal of a conveyor. The strong magnetic field will attract and hold the iron tramps when material passes through the plate magnet. It is used in protecting your handling facilities, product, and processing equipment from tramp iron hazards-fine ferrous fragments, shavings, nuts, bolts, and mavericks such as wrenches, screwdrivers, and hammers from even free-flowing, clumping or bridging type materials. Hump Magnets are used to fulfill the separation demands of iron particles from the plastic pallet, grain, seeds, woven fabric, free-flowing powder.
